Sports Light Fixture
Sports Light Fixture?
Our sports light fixtures are designed to show the clean and clear game scenes to spectators and TV viewers as well as athletes by adjusting the brightness of the game target. Also, the glare-free lighting enables the camera to capture the game well and the spectators to see the game in the field vividly.
Operation Optimization
A flexible and multi-purpose lighting system ready for the future responds to future requirements
Energy-efficient LED lighting system and connectivity, remote monitoring reduces costs

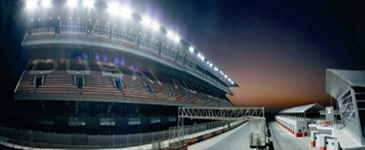

Improved Safety

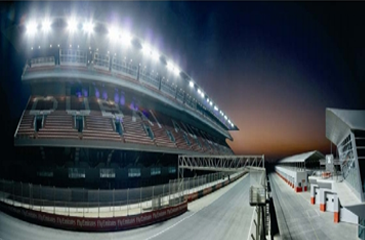

High illuminance zones inside and outside the stadium improve safety and crowd flow
Improved safety and comfort for fans, players and staff improve stadium reputation
Light Fixtures

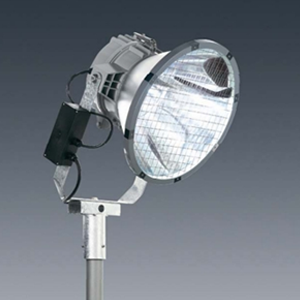

SITECO R3 MAXI
1. Manufacturer : Germany Siteco Beleuchtungstechnik
2. Model name : The Sicompact R3 MAXI
3. Country of origin : Germany
4. Material : Aluminium die-cast
5. Color : Metalic gray
6. Light distribution : Narrow ~ Very wide beam
7. Lamp : Metal halide HIT-DE 2000W
8. Degree of protection : IP 65

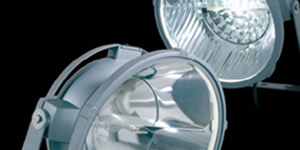

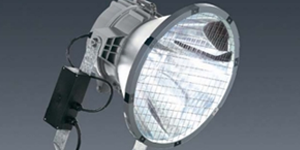

SITECO R2 MAXI
1. Manufacturer : Germany Siteco Beleuchtungstechnik
2. Model name : The Sicompact R2 MAXI
3. Country of origin : Germany
4. Material : Aluminium die-cast
5. Color : Metalic gray
6. Light distribution : Narrow ~ Very wide beam
7. Lamp : Metal halide HIT-DE 2000W
8. Degree of protection : IP 65

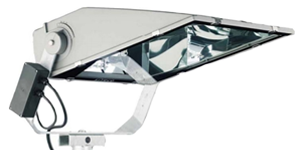

SITECO A2 MAXI
1. Manufacturer : Germany Siteco Beleuchtungstechnik
2. Model name : The Sicompact A2 MAXI
3. Country of origin : Germany
4. Material : Aluminium die-cast
5. Color : Metalic gray
6. Light distribution : Narrow ~ Wide beam
7. Lamp : Metal halide HIT-DE
8. Degree of protection : IP 65
Best Efficiency & Best Reliability
87% instrument efficiency, the highest among light projectors for the stadium
When using R3, the same illuminance with the quantity at least 10% less than ours or other products
Accurate illumination with 7 types of light distribution
Scientific heat-management design extends lamp life and internal shade prevents light pollution
※ Result comparison with World Cup Stadium design complying with FIFA regulations
|
R3 MAXI |
High-grade standard projector |
| Number of projectors |
306 |
352 |
| Horizontal illuminance EH : U1 / U2 |
3112 Lux, 0.65 / 0.80 |
3140 Lux, 0.71 / 0.86 |
| Ev fixed camera : U1 / U2 |
2432 Lux, 0.56 / 0.75 |
2424 Lux, 0.61 / 0.77 |
| Ev playing field camera : U1 / U2 |
1954 Lux, 0.51 / 0.74 |
1933 Lux, 0.58 / 0.76 |

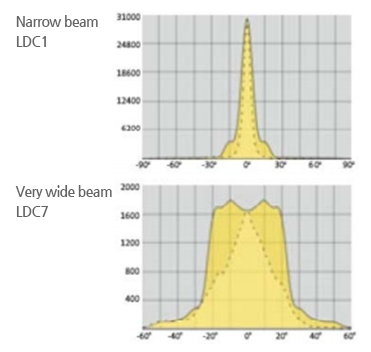

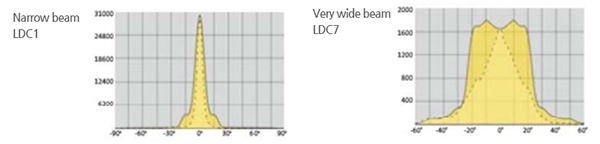

Use of reflectors of 7 types of light distribution
Variable and precise illumination that designers want
1. Narrow beam
2. Narrow beam
3. Narrow beam
4. Wide beam
5. Wide beam
6. Wide beam
7. Very wide beam
LDC1
LDC2
LDC3
LDC4
LDC5
LDC6
LDC7

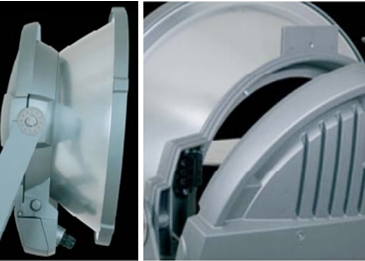

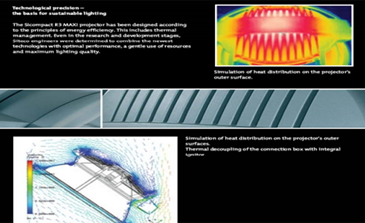

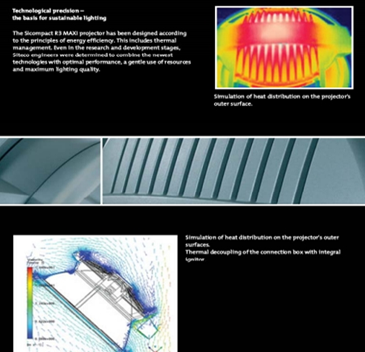

Maximum Efficiency
The structure with the easiest thermal emission makes it possible to extend the life of the design lamp and maximize the efficiency of the lamp.

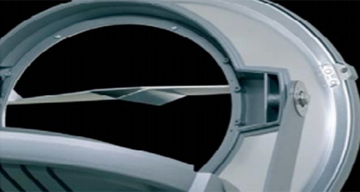

The reflector directly exposed to the outside facilitates thermal emission (prevents efflorescence due to heat of lamp)
Superior cooling function with wide surface area heat protection coating
(Semi-permanently usable equipment life 10 years warranty)

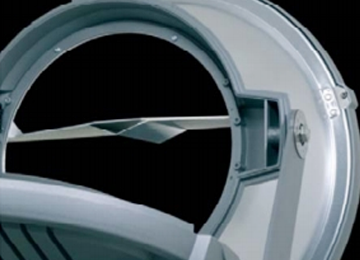

Exquisite Design and Superlative Materials
Size : D 500 X 248, Weight : 10 kg
Color : Dull metallic gray (heating coating)
High purity aluminum reflector and reinforced powder coating Zinc plated powder coating bracket
Wind pressure area: Aw = 0.2 2㎡ (Favorable for lighting tower design)
Light Pollution Reduction Design
Eco-friendly products (installation of horizontal reflector) designed to minimize light pollution, which is a social issue in recent years and project light only where necessary
Can solve both high illuminance and anti-glare required in any kind of game (AGF Module: additional glare filter)
